Cba-I Vacuum Switch 250mm 220V 50Hz Circuit Breaker Analyzer

  • 1
  • 2
  • 3

Brand Name : Delta

Model Number : CBA-I

Certification : ISO9001

Place of Origin : China

MOQ : 1 set Circuit Breaker Analyzer

Price : USD1.0

Payment Terms : T/T, Western Union

Supply Ability : 1000 sets per month

Delivery Time : 10 days

Packaging Details : Cba-I Vacuum Switch 250mm 220V 50Hz Circuit Breaker Analyzer packed in veneer case

Item Name : Cba-I Vacuum Switch 250mm 220V 50Hz Circuit Breaker Analyzer

Functions : Cba-I Vacuum Switch 250mm 220V 50Hz Circuit Breaker Analyzer，Test parameters of various kinds of switches

Applicable switches : Vacuum Switch 250mm 220V 50Hz Circuit Breaker Analyzer，Indoors or outdoors switches,vacuum switches, SF6 switches and so on

Features : Intelligent, multi-functional, accurate data, strong anti-jamming, easy operation, small size, beautiful appearance

Time measurement range : 6000ms

Test standard : IEC62271

Power supply : AC220V ± 10%, 50Hz/60Hz

Warranty : One year

Service : OEM service is available

Contact Now

Cba-I Vacuum Switch 250mm 220V 50Hz Circuit Breaker Analyzer

Introduction:

  • Cba-I Vacuum Switch Breaker Analyzer​ is designed to meet the need of testing high_voltage switches.

  • Cba-I Vacuum Switch Breaker Analyzer​ takes the micro controller unit(MCU) for core to sample, pr℃ess and then output; the main characteristic is that it’s operated in Chinese, for example ,the results are displayed and printed in Chinese.

  • Cba-I Vacuum Switch Breaker Analyzer​ has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, beautiful appearance, etc;

  • Cba-I Vacuum Switch Breaker Analyzer​ can test the switches as follows:indoors or outdoors switches with less oil or more oil,vacuum switches, SF6 switches and so on.

Features:

  • Closing and opening time measurement of 12 channels

  • Max difference of closing or opening time measurement of three phases

  • Bounce time and frequency measurement of breaker closing

  • Circuit breaker closing and opening speed measurement

  • Travel-time, Coil current-time curve of circuit breaker operation measurement

  • Clearance of circuit breaker measurement

  • Variable DC circuit breaker operation power supply

  • Print test results by internal micro printers

Parameters:

Time measurement range

6000ms, resolution 0.1ms

Time measurement error

<1%RDG+0.2ms

Speed measurement

Range 2m/s resolution 0.01m/s max error<0.1m/s

Range 20m/s resolution 0.01m/s max error<0.2m/s

Travel measurement

Range 250.0mmresolution 1mmmax error 1mm

DC Power out

DC30V~250V/10A (instantaneous)

Travel sensors configuration

grating and angle

Test standard

IEC62271

LCD

128*64

Power supply

AC220V±10% 50Hz/60Hz

Working Condition

Temperature: 0~50°C humidity: <85%

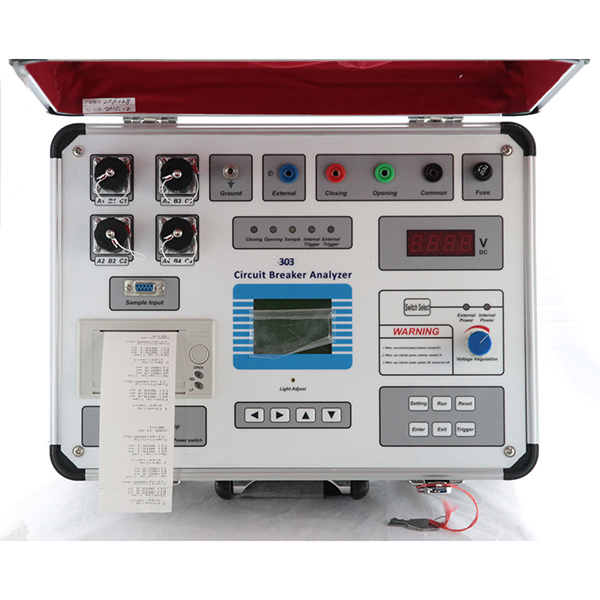

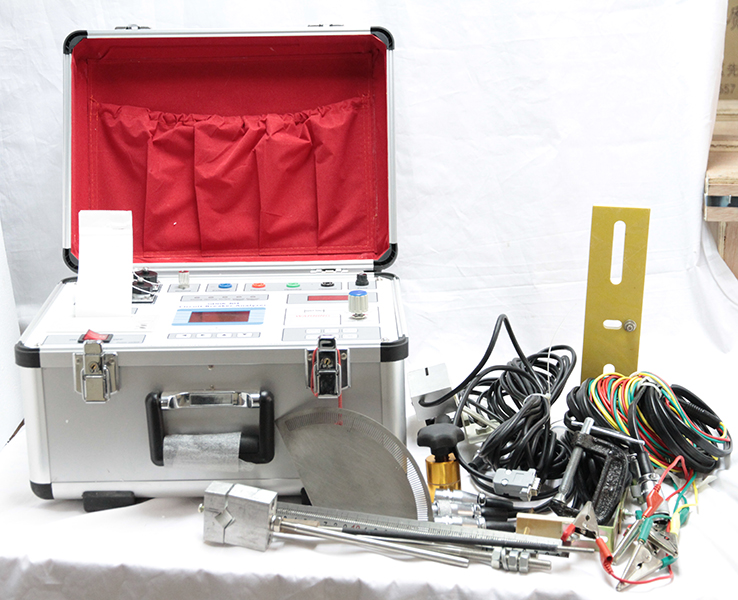

Real Picture:

Cba-I Vacuum Switch 250mm 220V 50Hz Circuit Breaker Analyzer
Cba-I Vacuum Switch 250mm 220V 50Hz Circuit Breaker Analyzer
